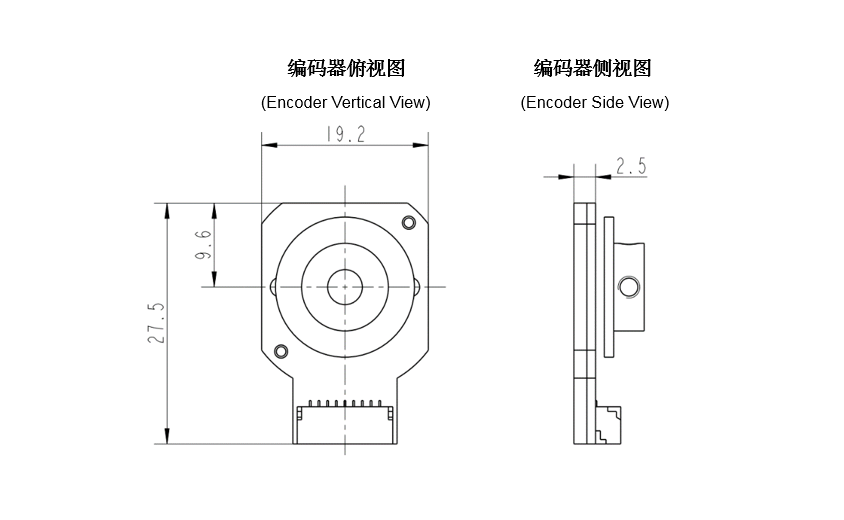

Motor Shaft diameter

3mm,4mm,5mm,6mm,6.35mm,7mm

Suitable for shaft   diameter 3mm,4mm,5mm,6mm,6.35mm,7mm

Storage Temperature

-40℃～85℃

Environmental   conditions

Application

No corrosive,   flammable, explosive, conductive gas, liquid and dust.

Temperature

-25℃～80℃

Humidity

No more than 85% RH

Electrical Parameter

Supply Voltage

5VDC±0.5V

    Current   Consumption

≤60mA

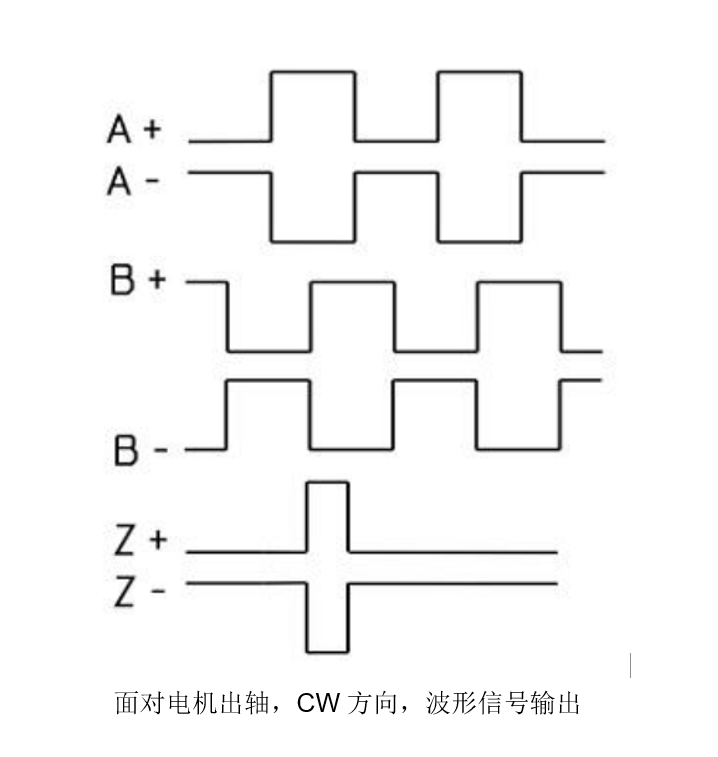

Differential   Single Output

5V,GND,   A+/A-,B+/B-,Z+/Z-,

  Output Level mode

TTL Compatible

Index Width

1/4T

Differential   Output Voltage

High Level   Output (VoH) ≥3.4V

Low Level Output   (VoL) ≤0.5V

Differential   Signal Output Format

Line Drive 26C31

Optional   Resolution(Unit：CPR)

500/1000/2000

Duty Cycle

50% ±10%

Phase Difference

 90°±10°

Frequency Response

≤220KHz

Note: The signal   frequency = (Speed(Rpm)  *  number of Lines)/60
